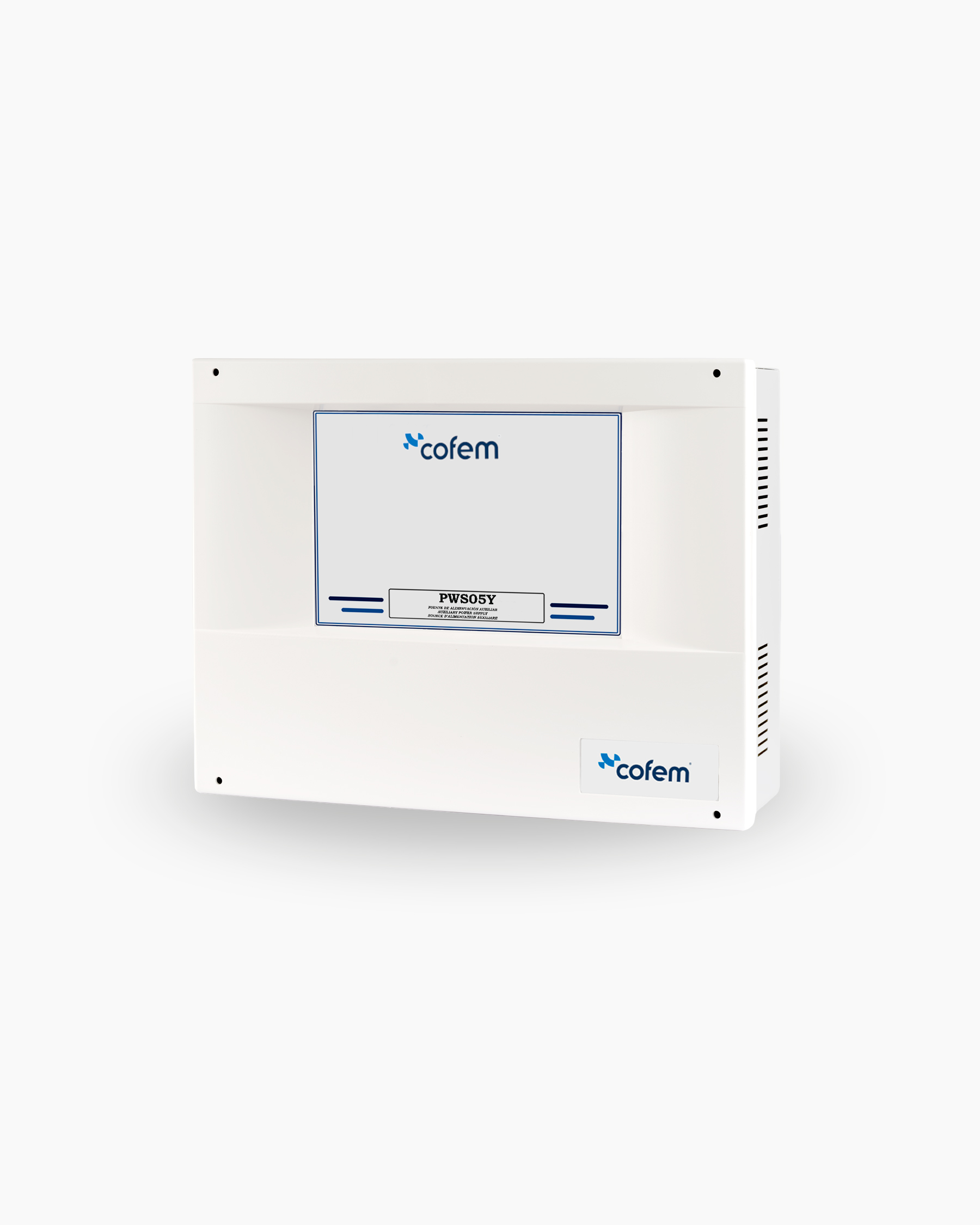

External Power Supply Pws03y / Pws05y
External Power Supply (with built-in battery charger).
There are 2 power supply models depending on the needs of the system:
- PWS03Y: 3A(100w) power supply capacity.
- PWS05Y: Power capacity of 5A(155w).
The PWS is installed inside a 424 x 330 x 160 mm chest (with cover), which provides additional space for placing the batteries inside.
Existing variant with black cabinet and grey door (PWS03 / PWS05).
Key features
- Power supply voltage: 110 230V/AC 50Hz
- Output voltage: 27.4 ~ 27.8 V/AC
- Output current: PWS 03: 3A / PWS 05: 5A
- Battery charger: Yes
- Humidity: 20 – 95% RH
- Temperature: -10ºC + 50ºC
- Dimensions: 424 x 330 x 160 mm (with cover)
- IP protection: IP 30
