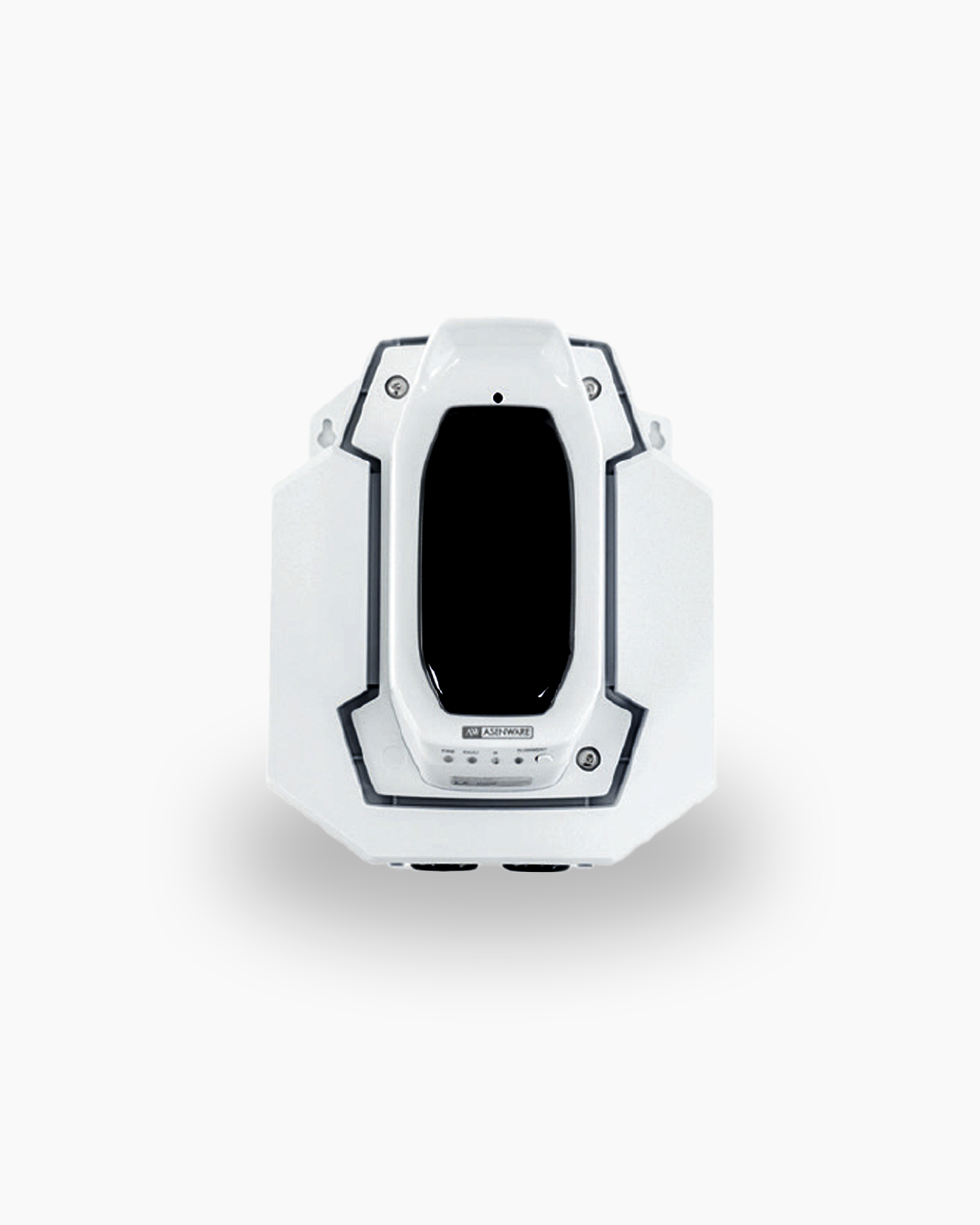

DLRC beam detector
DLRC beam detector
Optical smoke beam detectors for fire detection system consisting in a system of emitting/receiving an optical beam of infra-red light.
The installation of these detectors is ideal for large premises or for premises with very high ceilings.
Conventional beam detector between 5 to 160m. Supply from control panel or external supply. Alarm and fault output connected to zone.
Key features
- Supply: Loop 24V or DC12-24V
- Standby consumption: ≤20mA@DC24V
- Alarm consumption: ≤30mA@DC24V
- Laser concentrity: ≤1º@160m
- Maximum misalignment angle: 0,45º@160m
- Temperature: -10ºC to +55ºC
- Standard: EN 54-12
Technical Data Sheets
Manuals
Accessory and battery case C88V
Accessory and battery case C88V
Box to contain the accessories and batteries of the fire detection and alarm system when they cannot be placed inside the fire panel.
Key features
- Metallic chest painted in black color and with the door in gray.
- Dimensions: 320 x 415 x 130 mm (with cover).
Technical Data Sheets
Manuals
Accessory and battery case C77Y
Accessory and battery case C77Y
Box to contain the accessories and batteries of the fire detection and alarm system when they cannot be placed inside the fire panel.
Key features
- Metallic chest painted in black color and with the door in gray.
- Dimensions: 368 x 336 x 96 mm (with cover).
Technical Data Sheets
Manuals
Accessory and battery case C77
Accessory and battery case C77
Box to contain the accessories and batteries of the fire detection and alarm system when they cannot be placed inside the fire panel.
Key features
- Metallic chest painted in black color and with the door in gray.
- Dimensions: 368 x 336 x 96 mm (with cover).
Technical Data Sheets
Manuals
External power supply ZAFIRPWS
External power supply ZAFIRPWS2 / ZAFIRPWS5
External power supply (with built-in battery charger) for fire detection, certified according to EN 54-4.
This equipment is especially indicated to adequately power any element of the fire detection system that requires external power supply.
There are 2 power supply models depending on the needs of the system:
- ZAFIRPWS2 (65w): 1.5A (65w) power capacity.
- ZAFIRPWS5 (150w): 4A (150w) power capacity.
The power supply is installed inside a 368x336x96mm enclosure (with cover), which allows for additional space to place the batteries inside (2×12 Vdc 7Ah).
There is a variant with white door (ZAFIRPWS2Y and ZAFIRPWS5Y).
Technical features
- Power supply: 110/230V 50-60Hz/AC
- Output voltage: 30VDC
- Consumption in standby: 50mA
- Output current: ZAFIRPWS2(Y): 1,5A / ZAFIRPWS5(Y): 4A
- Battery charger: Yes
- Humidity: 20-95%RH
- Temperature: -10ºC to +50ºC
- Dimensions: 368x336x96mm (with cover)
- IP protection: IP30
- Standard: EN 54-4
Technical Data Sheets
Manuals
A30XDC Duct Detector Box
A30XDC Duct Detector Box
Equipment for installing fire detectors in ventilation ducts.
The equipment consists of a box, pipes, socket for fire detector and fasteners (screws, nuts, etc.). The fire detector is not included. The socket is compatible with both conventional and analog detector, so the equipment can be used with both systems. It is generally recommended to install pure smoke detectors (without thermal elements) in this equipment, since heat detectors or thermal elements of optical-thermal detectors can be activated by sudden changes in air temperature in ventilation ducts.
BT-24 Batteries
BT-24 Batteries
12 Vdc batteries for power supply of Cofem’s fire detection and alarm system.
Key features
-
Both fire panels and external power supplies require two 12 Vdc batteries connected in series.
There are different references according to the capacity required:
- BT-2402: Set of 2 batteries of 12 Vdc with capacity of 2 Ah.
- BT-2406: Set of 2 batteries of 12 Vdc with capacity of 6 Ah.
- BT-2415: Set of 2 batteries of 12 Vdc with capacity of 15 Ah.
- BT-2424: Set of 2 batteries of 12 Vdc with capacity of 24 Ah.
Technical Data Sheets
Manuals
Accessory and battery Case C88
Accessory and battery Case C88
Box to contain the accessories and batteries of the fire detection and alarm system when they cannot be placed inside the fire panel.
Key features
- Metallic chest painted in black color and with the door in gray.
- Dimensions: 424 x 330 x 160 mm (with cover).
Technical Data Sheets
Manuals
CAEC outdoor alarm panel
CAEC outdoor alarm panel
External alarm panel.
- Outdoor red siren made of ABS plastic.
- Built-in back cover to protect all internal circuitry.
- They work as 24V power sirens.
- Piezoelectric speaker.
- EN54-3 type B certified.
- Activation: by power application
Key features
- Power supply: 24 Vdc
- Power: 92 dB
- Timing: per cycle 3/15 minutes
- LEDs: 1 led bar
- Dimensions: 260 x 275 x 55 mm
- Current / consumption: 200 mA
- IP protection: IP44
Technical Data Sheets
Manuals
External Power Supply Pws03y / Pws05y
External Power Supply Pws03y / Pws05y
External Power Supply (with built-in battery charger).
There are 2 power supply models depending on the needs of the system:
- PWS03Y: 3A(100w) power supply capacity.
- PWS05Y: Power capacity of 5A(155w).
The PWS is installed inside a 424 x 330 x 160 mm chest (with cover), which provides additional space for placing the batteries inside.
Existing variant with black cabinet and grey door (PWS03 / PWS05).
Key features
- Power supply voltage: 110 230V/AC 50Hz
- Output voltage: 27.4 ~ 27.8 V/AC
- Output current: PWS 03: 3A / PWS 05: 5A
- Battery charger: Yes
- Humidity: 20 – 95% RH
- Temperature: -10ºC + 50ºC
- Dimensions: 424 x 330 x 160 mm (with cover)
- IP protection: IP 30
